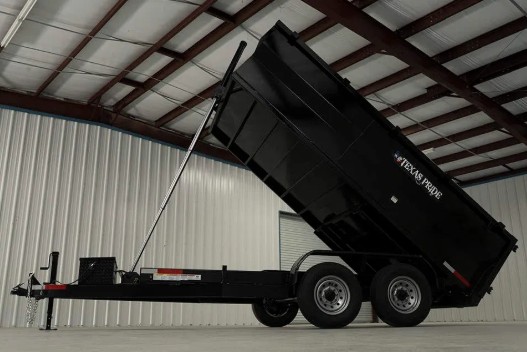

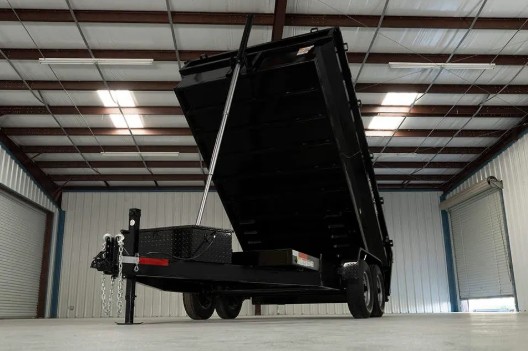

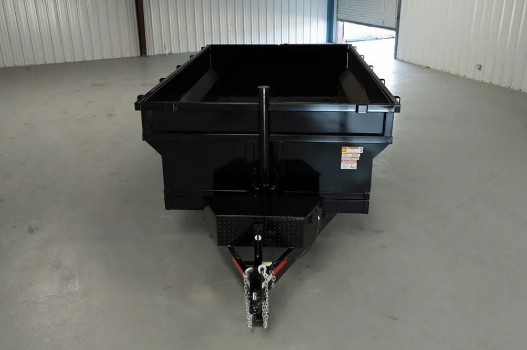

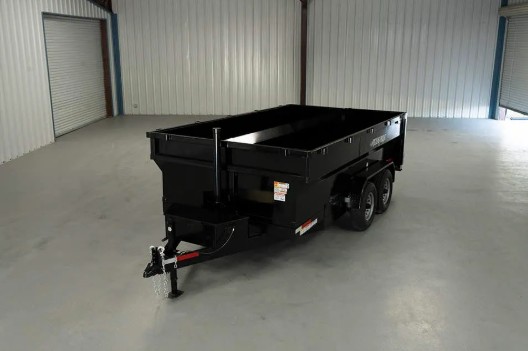

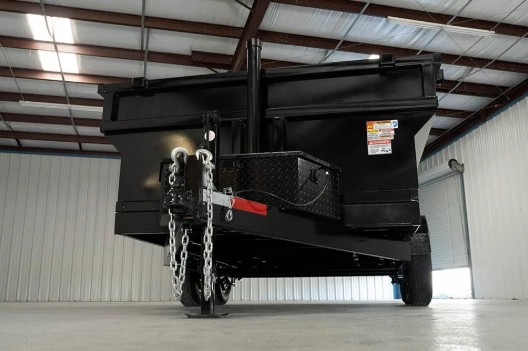

14k lb GVWR Bumper Pull Dump Trailer
G.V.W.R.:14,000 lbs
Empty Trailer Weight:3,800lbs (14′ trailer with no additional options)
Net Payload Capacity:10,200lbs (14′ trailer with no additional options)
Axles:Dual 7,000 lb Direct Lube 8 lug (electric brakes on both axles)
Suspension:Heavy Duty Slipper Spring Suspension
Brakes:All wheel electric brakes on all axles (12″ x 2″ brake shoe)
Tires:New 16″ ST235/80R16 10ply radial LRE (3,520lbs ea)
Wheels:16″ x 6″ eight hole white or silver (based on stock)
Main Frame:6″ x 2″ x 3/16″ wall rectangular tubing
Tongue:6″ channel
Tilt Frame:3″ x 2″ x 3/16″ wall rectangular tubing
Cross Members:3″ channel
Bed Flooring:1/8″ thick sheet steel
Bed Siding:1/8″ thick sheet steel
Tie Downs:Stake pockets & D-Rings
Deck width:82″
Deck Length:12′, 14′ or 16′
Deck Height:Approximately 26″
Side Wall Height:24″ standard
Rear Doors:Double swing doors (open like barn doors)
Battery:Group 24 deep cycle marine
Charging System:Onboard 110v charger and tester (also charges off truck while being towed)
Pump:Electric over hydraulic (1.7 gpm) – power up / gravity down
Controller:15′ corded remote control
Toolbox:Front locking tool box – contains battery and pump
Hydraulics:Multi stage trunnion mount telescopic cylinder
Coupler:4 hole adjustable height 2 5/16″ ball
Safety Chains:Two heavy duty safety chains
Jack:12,000 lb drop leg jack
Fenders:14ga heavy duty tread plate
Lighting:All flush mount or recessed lifetime LED stop / turn / clearance lighting
Wiring:U.S. made sealed modular wiring harness
Safety Equipment:DOT required emergency break-a-way kit and conspicuity tape & Prop Rod
Finish:Fully primed and painted with automotive grade acrylic enamel
