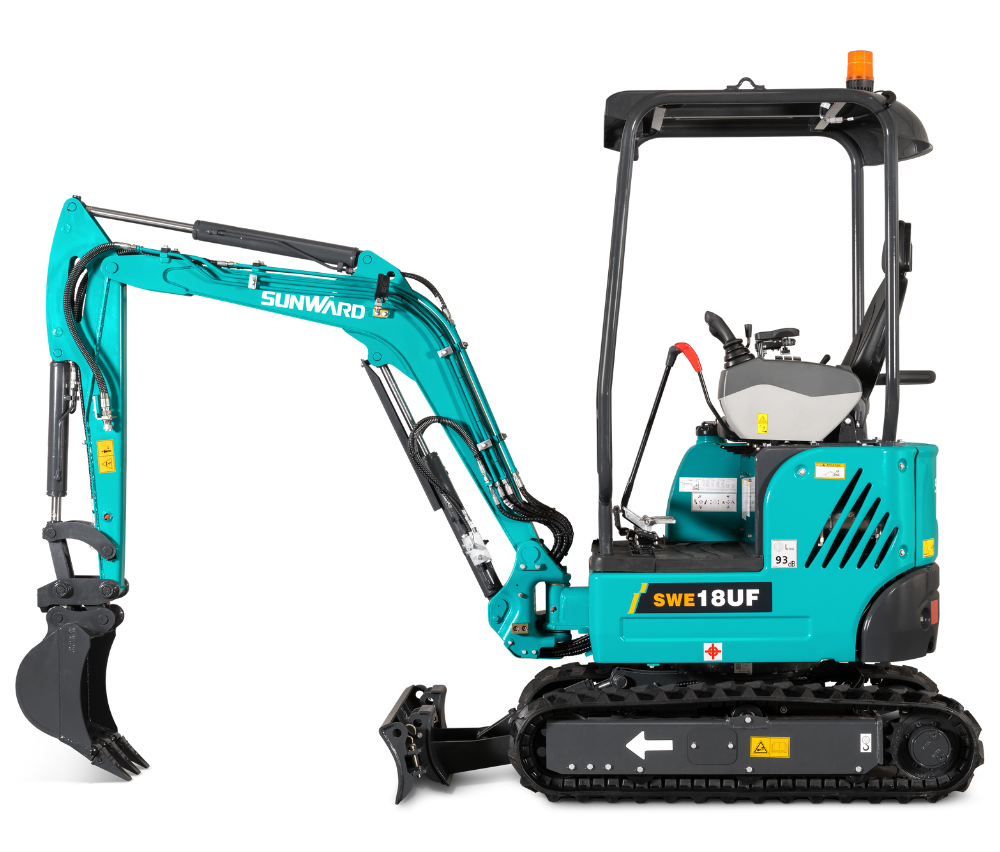

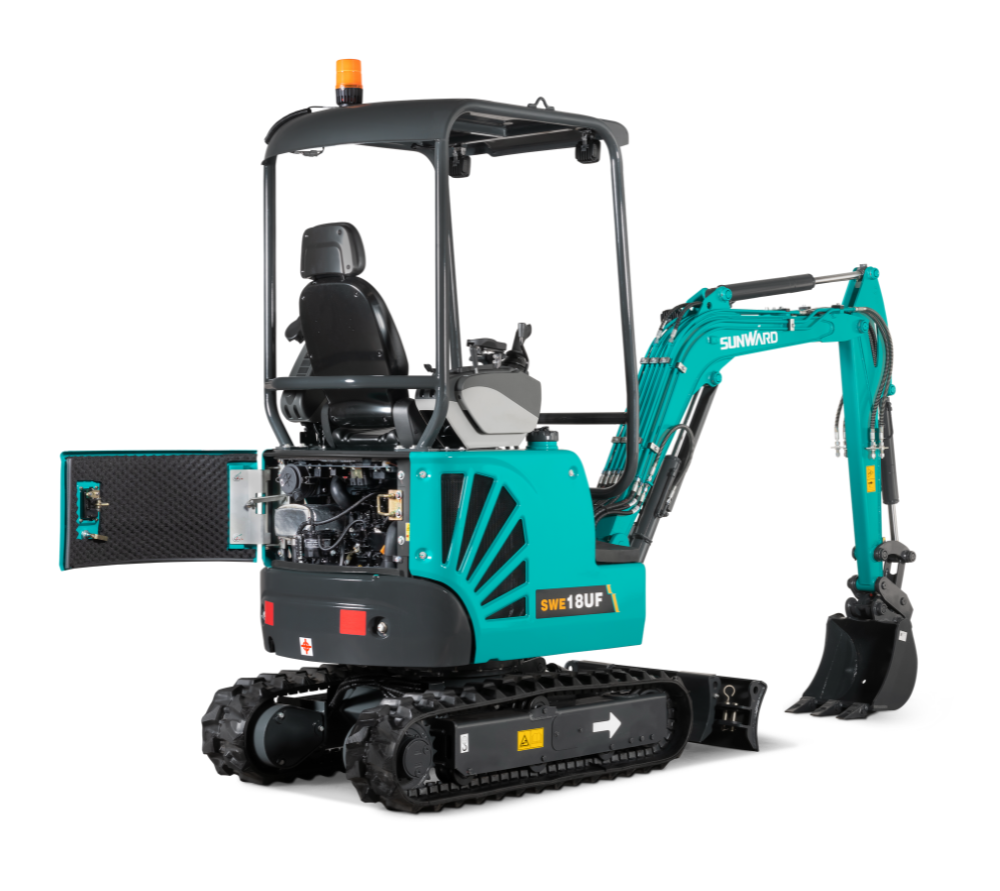

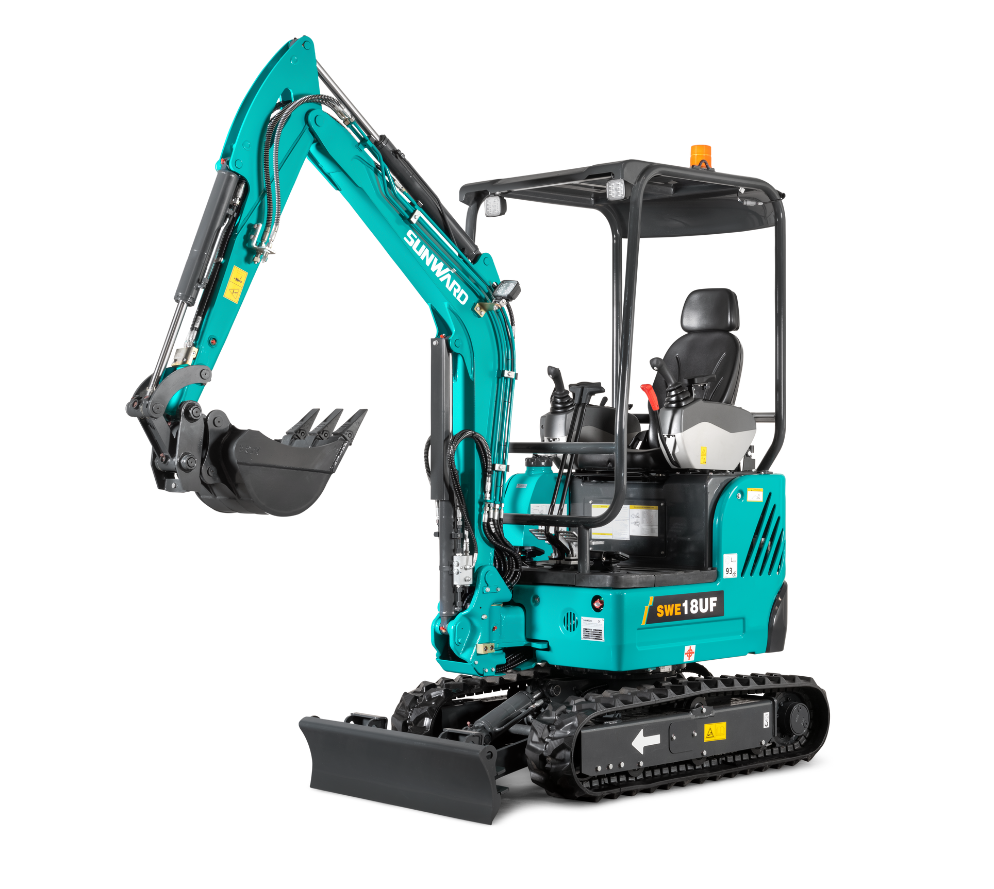

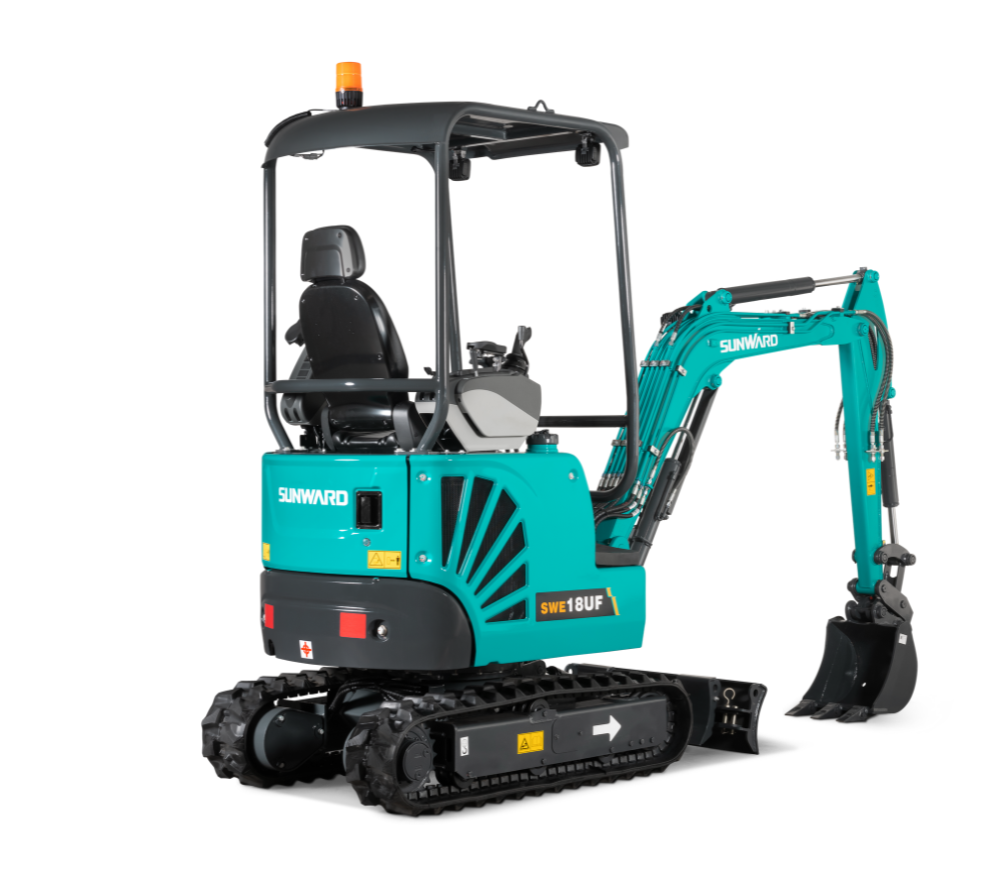

The SWE18UF has exceptional digging forces of over 5,103 lbf (bucket) and over 2,526.8 lbf (arm), which easily rival the 2-ton excavator competitors on the market. With probably the longest arm in its class, allowing long-reach digging capacity, the SWE18UF’s boom cylinder design provides a reach that’s over 13 feet long. With 3 separate auxiliary lines as standard (the market provides 1 to 2 lines as standard), the SWE18UF is ready for all types of attachments, and thus, it can adapt to any job site. Comfort and safety are not at rest thanks to a 4-pole canopy design, the high back adjustable suspension seat, and an ergonomically designed operator workspace.

Discover all the other advantages of the Sunward SWE18UF.

Operating weight                       4,145 lbs.
Standard bucket capacity        10.56 gal
Shipping length                          11’9″
Shipping width                           3’3″
Height over canopy                   7’9″

Model                                            Yanmar 3TNV80F-SSSU
Displacement                              77.385 cu. in.
Rated power output                   18HP

Type                           2 Variable Piston Pumps + 1 Gear Pump + 1 Pilot Gear Pump
Total Flow                           16.1 gal/min
Auxiliary Flow                    9.4 gal/min

Max. digging depth                     7’3″
Max. digging reach                     12’11”
Max. bucket digging force         5,103 lbf
Max. arm digging force              2,526lbf
