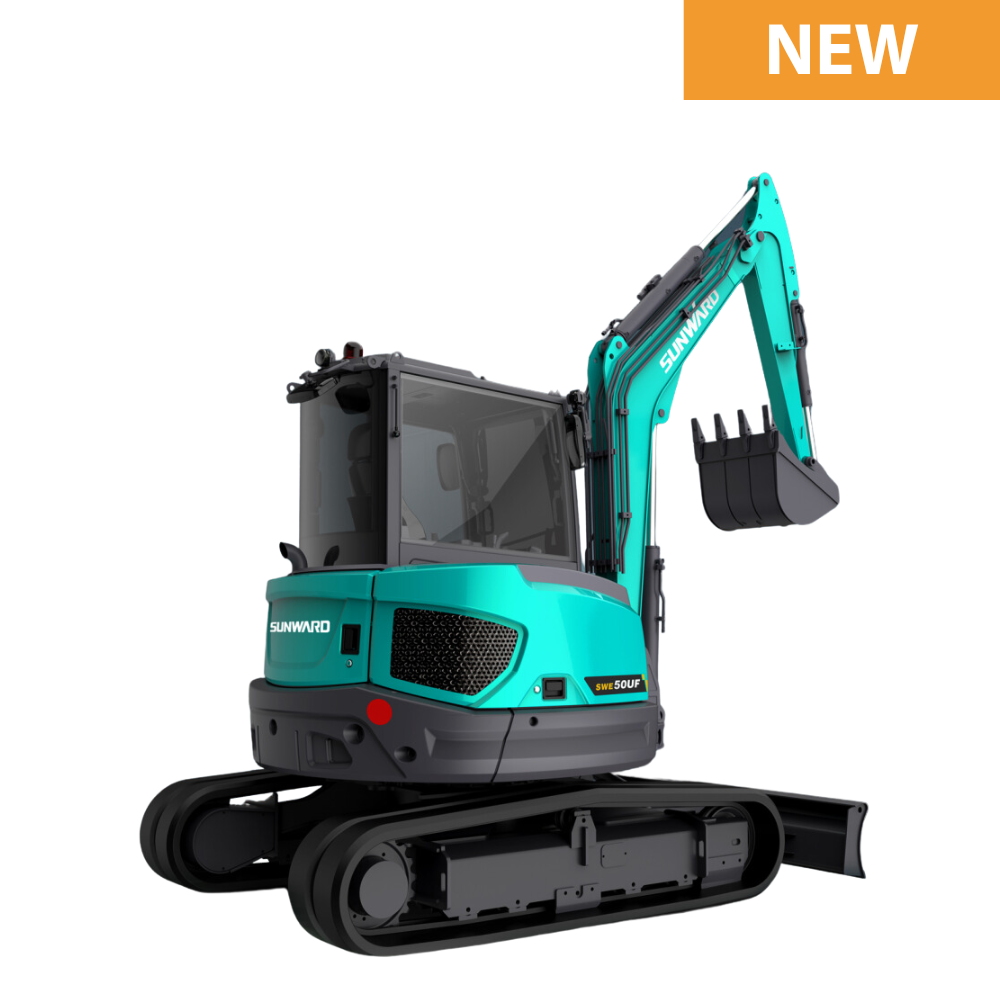

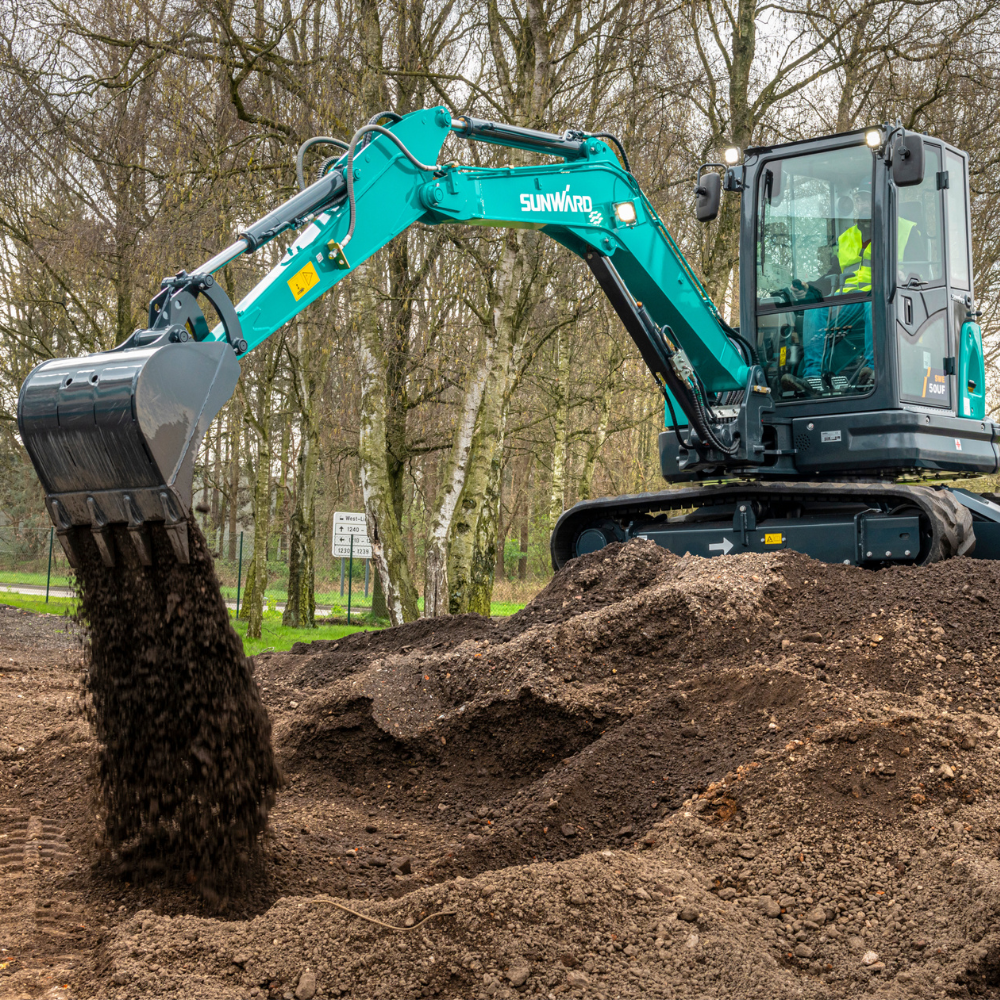

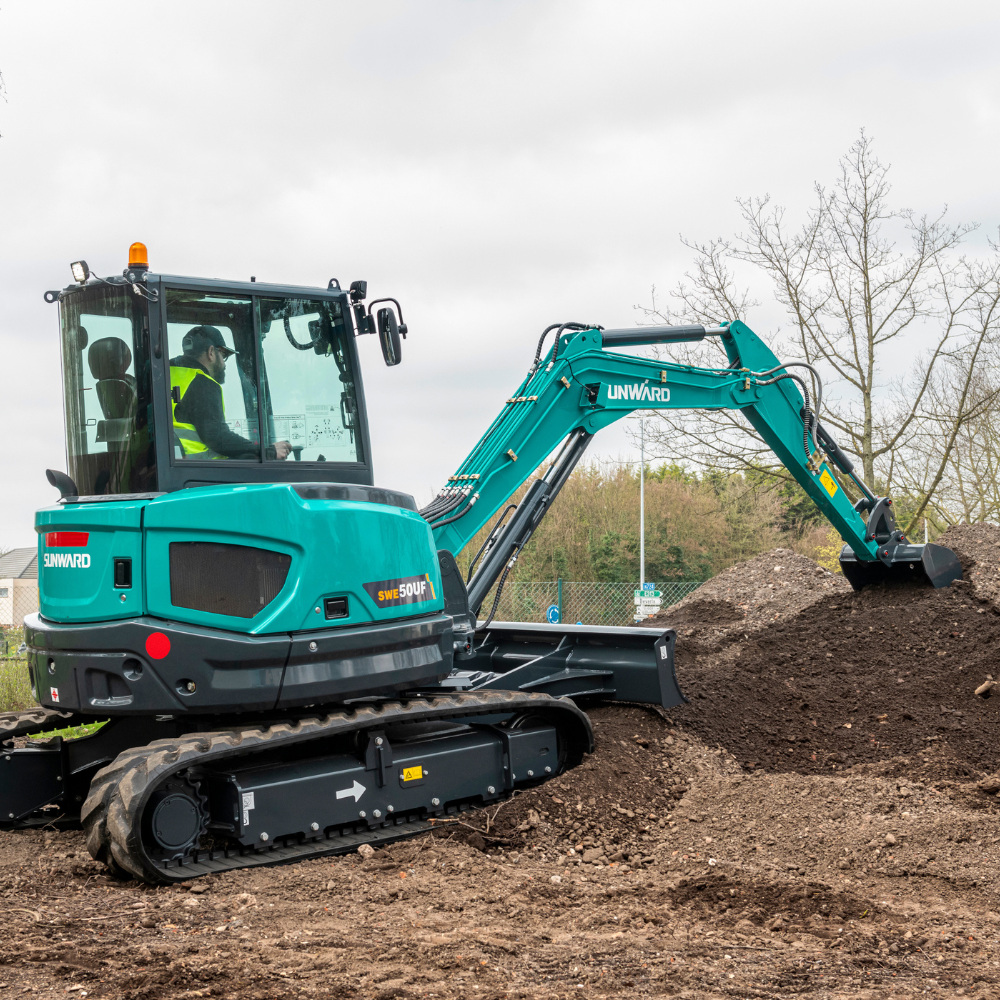

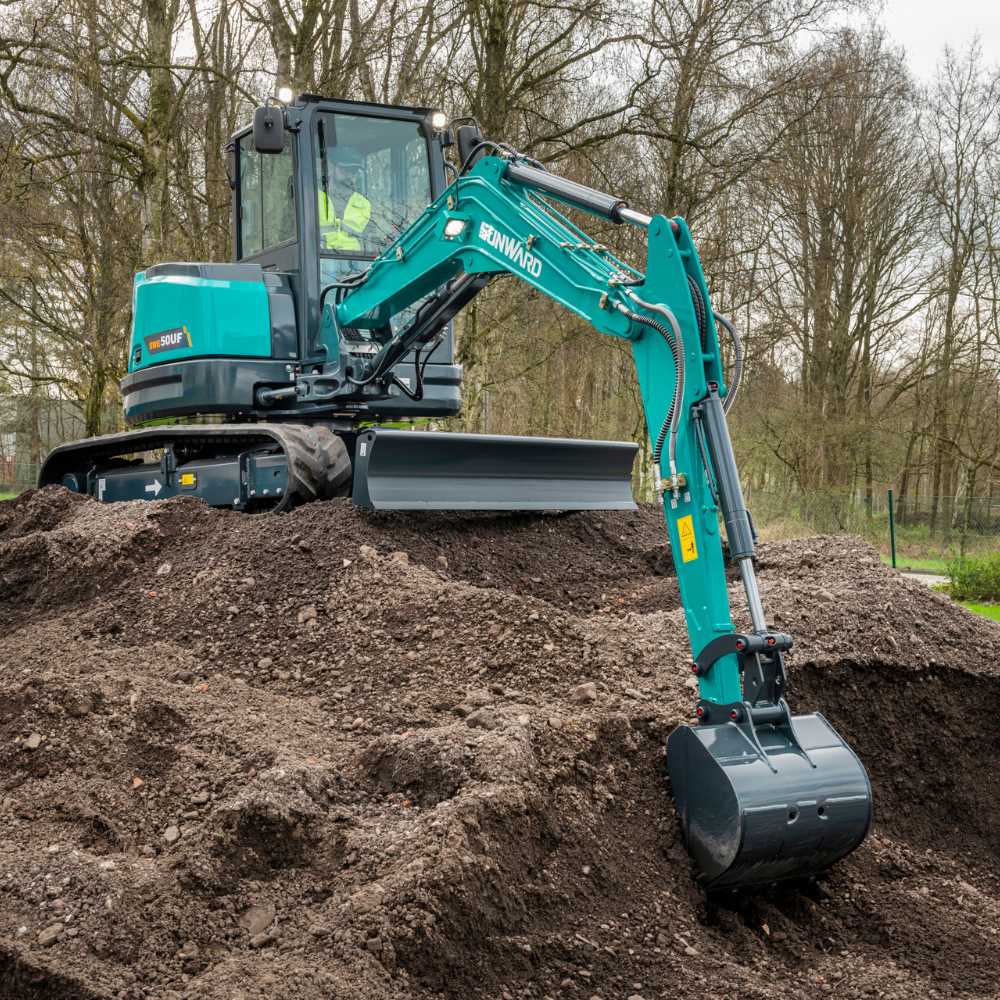

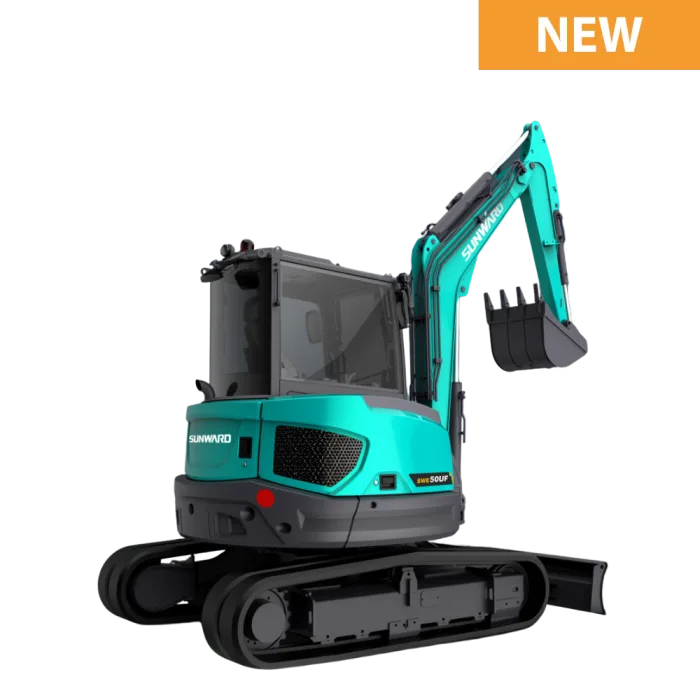

This new model, expertly designed to fill the gap between the SWE 35UF and SWE 60UF, boasts a zero-tail swing feature, making it perfect for narrow space operations.

The SWE 50UF is equipped with a powerful Kubota D1803-T engine, ensuring robust performance with a significant torque of 150 N·m/rpm. With an operating mass of 5.3 tons and a bucket capacity of 0.14 m³, it offers both efficiency and precision in various construction environments.

The SWE 50UF stands out for its comfortable and intelligent cabin design, featuring shock-absorbing seats and a 7-inch color touchscreen for seamless flow adjustment and control. The large undercarriage enhances stability, especially on challenging terrains, while the high-displacement travel motor ensures easy mobility. Maintenance is made convenient with a full-open cover, allowing easy access to all parts.

Furthermore, Sunward’s commitment to innovative design, as evidenced by winning an iF Design Award for its zero-tail range, is continued in the SWE 50UF. This new model is not only a testament to Sunward’s engineering excellence but also to its dedication to cutting-edge design in heavy machinery.

Operating weight                       11797 lbs
Standard bucket capacity        0.18 yd3
Shipping length                          214.6 in
Shipping width                           78.7 in
Height over canopy                   101.2 in
Model Type                                   Kubota  D1803-T
Emission rating                           EU Stage V
Power                                            39.8 HP / 29.7 kW
Displacement                              109.8 in3

Type                                            1 variable piston pump
Displacement                           4 gal / min
Hydraulic pressure                  507.6 psi

Max. digging depth                     132.9 in
Max. digging reach                      233.9 in
Max. bucket digging force         7643 lbf
Max. arm digging force              5170 lbf
