Need for a compact and versatile skid steer with good lift capacity and plenty of power?

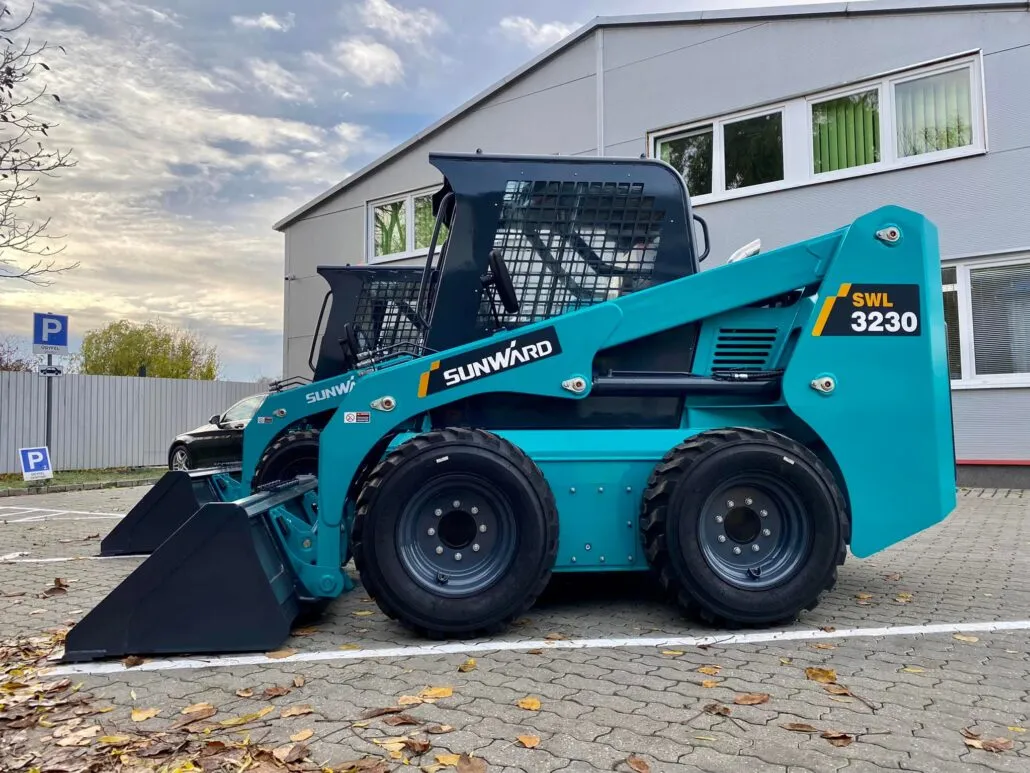

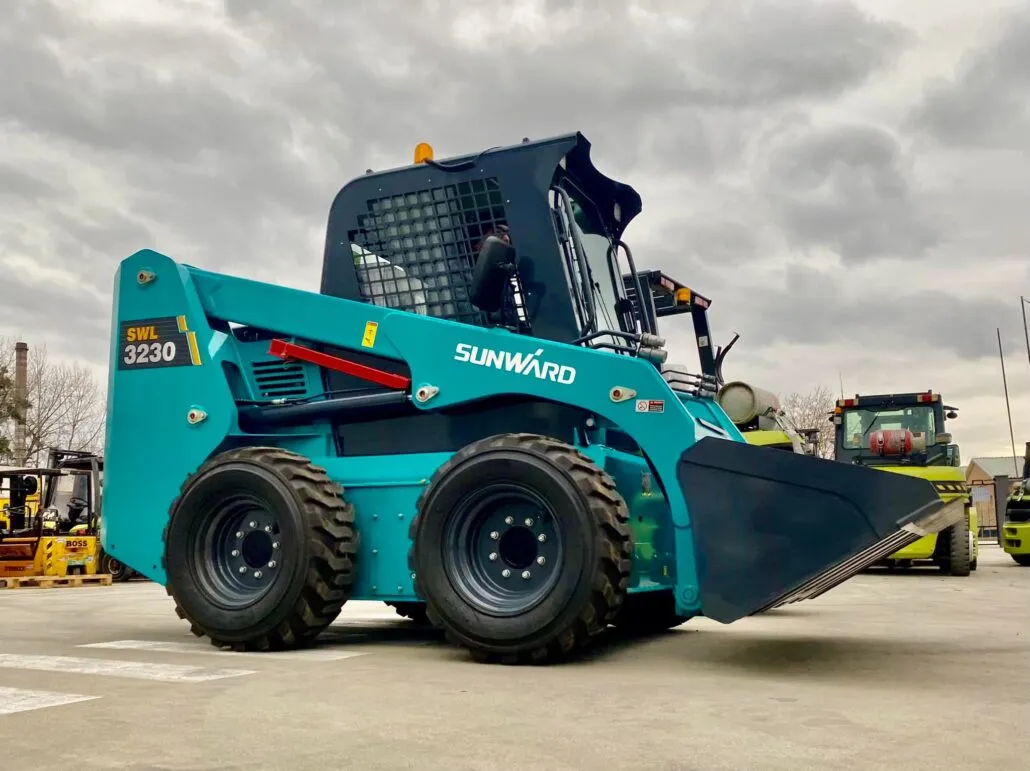

The Sunward SWL3230 skid steer is highly versatile and compact enough to be easily maneuverable in small spaces. Despite its compact size, you will be impressed by the great breakout force and huge lift capacity. The powerful Kubota engine offers performance, exceptional reliability, and long service life. Maintenance and service are also easily accessible. Daily maintenance is very easy since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the cab.

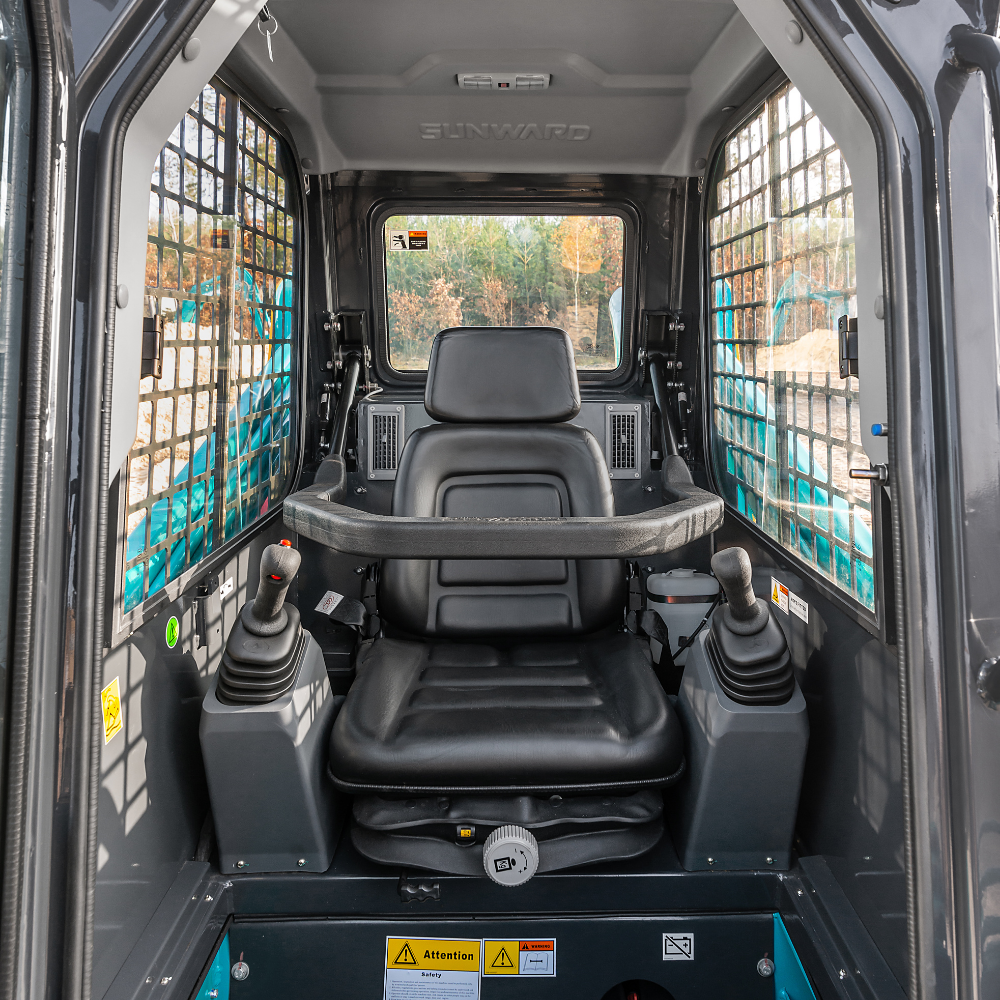

When it comes to comfort, the SWL3230 offers a spacious cab with a wide entrance, a comfortable seat, ergonomic controls, and excellent all-around visibility. Last but not least, safety is not at rest thanks to the cab coupled with the excellent visibility and great stability of the machine.

Discover all the other advantages of the Sunward SWL3230.

Operating weight                    7,716 lbs
Length                                        12’3″
Width                                          6′
Height                                         6’9″
Ground clearance                     8.1″
Turning radius from center    4’5″

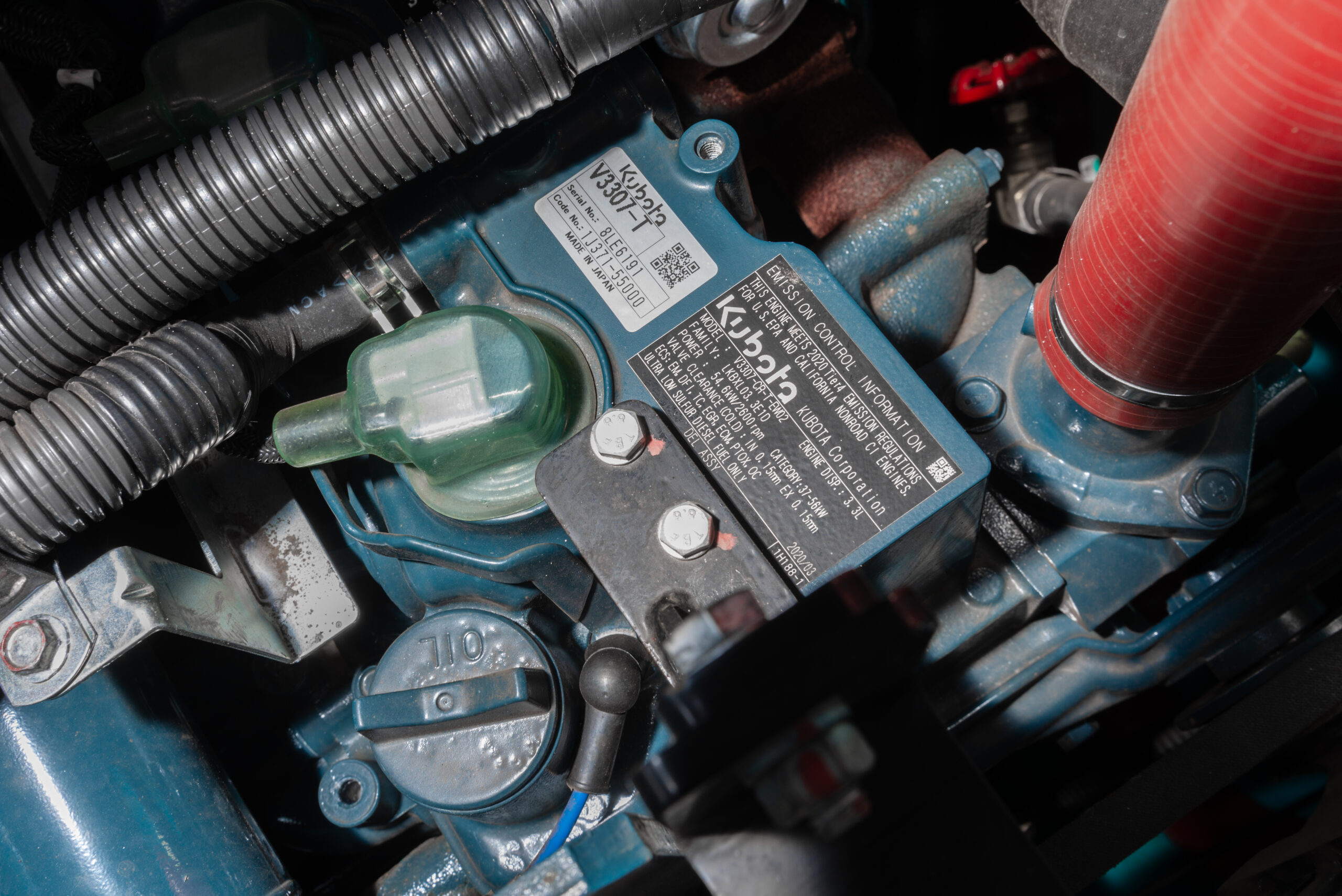

Model                                            Kubota V3307-CR-TE5B
Peak Torque                                195.5 lb-ft
Rated power output                  74.3 HP

Brand                        KYB
Displacement          22.7 gal/min
Pressure                    3,045 psi

Rated operating capacity       2,427 lbs
Tipping load                               4,854 lbs
Tilt force                                      5,472 lbs
Lift force                                      5,357 lbs
