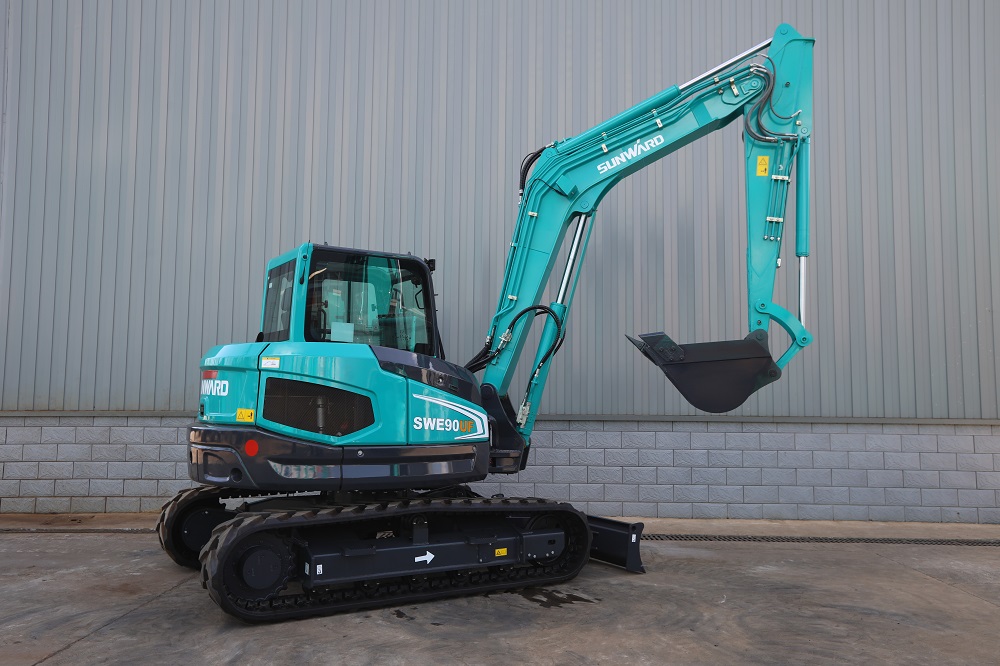

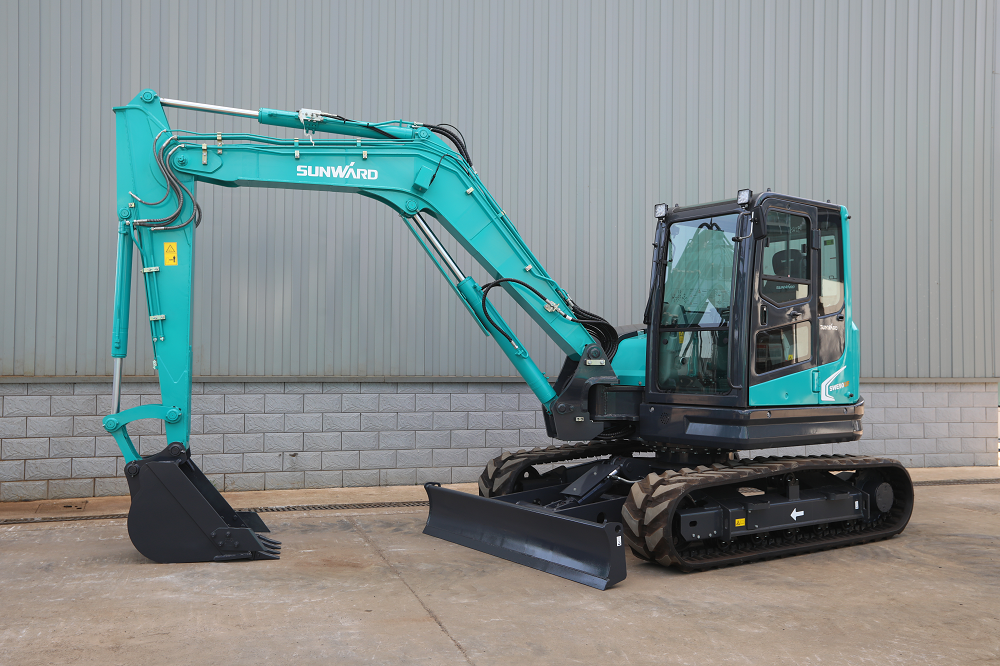

The Sunward SWE90UF compact excavator has been developed especially for contractors, from demolition to the rental market, all will appreciate this compact machine that delivers a heavy-duty performance. It features a very short-tail swing, making it the shortest 9-ton short-tail excavator available in the market.

Thanks to its design, the SWE90UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products. It combines the power of the Yanmar engine, delivering 62 HP, with incredible precision thanks to the dual proportional joysticks, the perfectly fitted hydraulic flow coupled with the LUDFF system (Load Independent Flow Control). To balance fuel consumption and the desired productivity, the SWE90UF offers 3 working modes.

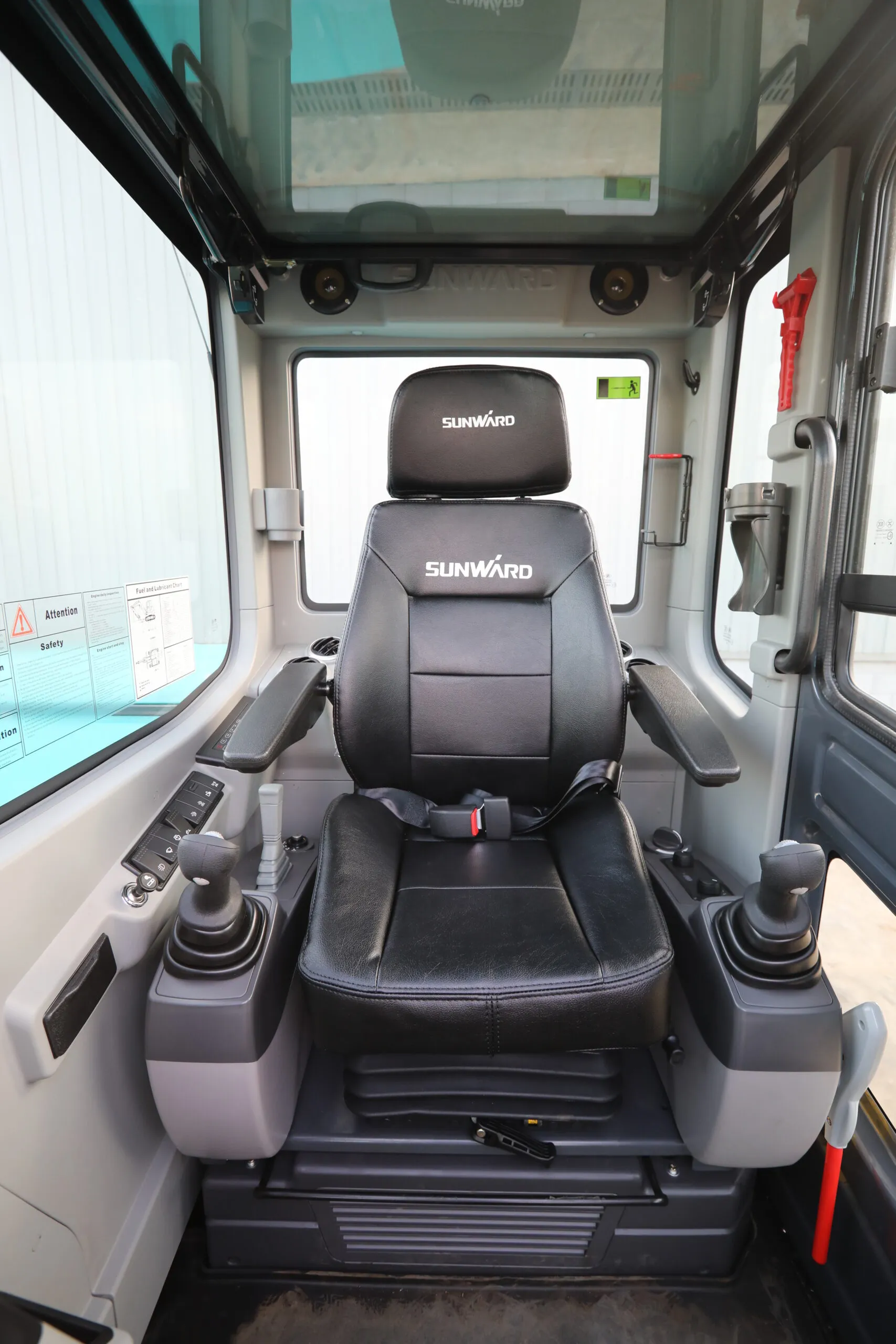

Of course, because we know that safety and comfort should go hand-in-hand, the SWE90UF keeps you safe and provides comfort in all working conditions. In the Sunward tradition of always offering the best value for money, the SWE90UF is no exception since it provides many features and up to 3 years of warranty as standard, at the right price.

Discover all the other advantages of the Sunward SWE 90UF.

Operating weight                   21,168 lbs.
Standard bucket capacity    0.34 yd3
Shipping length                      21’5″
Shipping width                       7’5″
Height over cabin                   9′

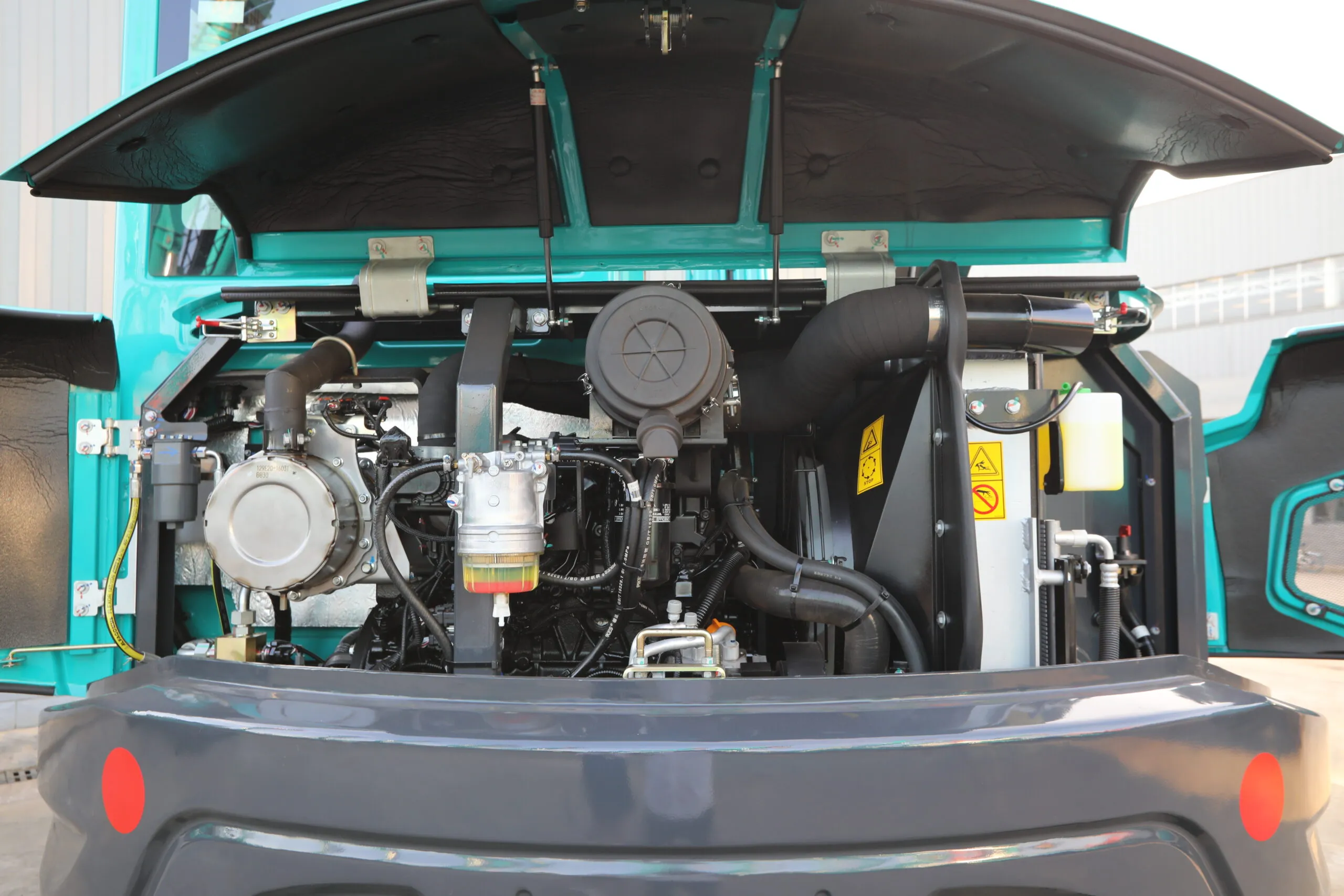

Model                                            Yanmar
Displacement                              0.88  gal
Rated power output                   62.8 HP

Type                         1 Variable Piston Pump
Auxiliary Flow                            42.2 gal/min
Hydraulic pressure                    4,061 psi

Max. digging depth                     15’6″
Max. digging reach                     26’4″
Max. bucket digging force        14,275 lbf
Max. arm digging force              8,542 lbf
